3D Printing Electronics PCB Components Assembly , Prototype PCB Fabrication

Name: 3D Printing Electronics PCB Components Assembly Prototype PCB Fabrication
Brand: OEM and ODM
Price: 1 USD

Wholesale 3D Printing Electronics PCB Components Assembly , Prototype PCB Fabrication from china suppliers

Brand Name : OEM and ODM

Model Number : SL81107S04

Certification : UL,RoHS, CE

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100000pcs per day

Delivery Time : 5-7 days

Packaging Details : ESD package

Board Thickness : 1.6mm

Min.Hole Size : 3mil

Min.Line Width : 3mil

Features 1 : Gerber/PCB file needed

Features 2 : 100% E-test

Features 3 : Quality 2 years guarantee

Contact Now

PCBA Board OEM 3D Printing Pen PCB Board PCB Assembly Service

Files Requested For PCB Assembly Quotation

---In order to provide you with the most efficient and accurate quote on manufacturing the requested unit, we ask that you provide us with the following information.
1. Gerber file,PCB file,Eagle file or CAD file are all acceptable
2. A detailed bill of materials (BOM)
3. Clear pictures of PCB or PCBA sample for us
4. Quantity and delivery required
5. Test method for PCBA to guarantee 100% good quality products.
6. Schematics file for PCB design if need to do function test.
7. A sample if available for better sourcing
8. CAD files for enclosure manufacturing if required
9. A complete wiring and assembly drawing showing any special assembly instructions if required

Bare Printed Circuit Board Process Capability

1	Layers	Single Sided,2 to 18 Layer
2	Board material type	FR4,CEM-1,CEM-3,ceramic substrate board, aluminum based board, high-Tg, Rogers and more
3	Compound material lamination	4 to 6 layers
4	Maximum dimension	610 x 1,100mm
5	Dimension tolerance	±0.13mm
6	Board thickness coverage	0.2 to 6.00mm
7	Board thickness tolerance	±10%
8	DK thickness	0.076 to 6.00mm
9	Minimum line width	0.10mm
10	Minimum line space	0.10mm
11	Outer layer copper thickness	8.75 to 175µm
12	Inner layer copper thickness	17.5 to 175µm
13	Drilling hole diameter (mechanical drill)	0.25 to 6.00mm
14	Finished hole diameter (mechanical drill)	0.20 to 6.00mm
15	Hole diameter tolerance (mechanical drill)	0.05mm
16	Hole position tolerance (mechanical drill)	0.075mm
17	Laser drill hole size	0.10mm
18	Board thickness and hole diameter ratio	10:1
19	Solder mask type	Green, Yellow, Black, Purple, Blue, White and Red
20	Minimum solder mask	Ø0.10mm
21	Minimum size of solder mask separation ring	0.05mm
22	Solder mask oil plug hole diameter	0.25 to 0.60mm
23	Impedance control tolerance	±10%
24	Surface finish	Hot air level, ENIG, immersion silver, gold plating, immersion tin and gold finger

Shinelink kinds PCBA Products

3D Printing Electronics PCB Components Assembly , Prototype PCB Fabrication

94V0 PCBA manufacture Scale capabilities up to

We combine advanced processes with highly skilled resources. Keeping up with the leading advanced technology and management system in One-stop services of PCB assembly

SMT process (RoHs Compliant) Capabilities up to:

1. 0201 Chip Size
2. 12 mils Integrated Circuit (IC) Pitch
3. Micro Ball Grid Array (BGA) – Pitch 16 mils
4. Flip Chip (Controlled Collapse Chip Connection) – Pitch 5 mils
5. Quad Flat Package (QFP) – Pitch 12 mils

THT(Wave soldering) process (RoHs Compliant) Capabilities up to:

1.Single side wave soldering

2.SMT & THT mixture process

3D Printing Electronics PCB Components Assembly , Prototype PCB Fabrication

PCB Assembly Capabilities

Turnkey PCBA	PCB+components sourcing+assembly+package
Assembly details	SMT and Thru-hole, ISO lines
Lead Time	Prototype: 15 work days. Mass order: 20~25 work days
Testing on products	Flying Probe Test, X-ray Inspection, AOI Test, functional test
Quantity	Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files we need	PCB: Gerber files(CAM, PCB, PCBDOC)
	Components: Bill of Materials(BOM list)
	Assembly: Pick-N-Place file
PCB panel Size	Min size: 0.250.25 inches(66mm)
PCB panel Size	Max size: 2020 inches(500500mm)
PCB Solder Type	Water Soluble Solder Paste, RoHS lead free
Components details	Passive Down to 0201 size
	BGA and VFBGA
	Leadless Chip Carriers/CSP
	Double-sided SMT Assembly
	Fine Pitch to 0.8mils
	BGA Repair and Reball
	Part Removal and Replacement
Component package	Cut Tape,Tube,Reels,Loose Parts
PCB assembly process	Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing

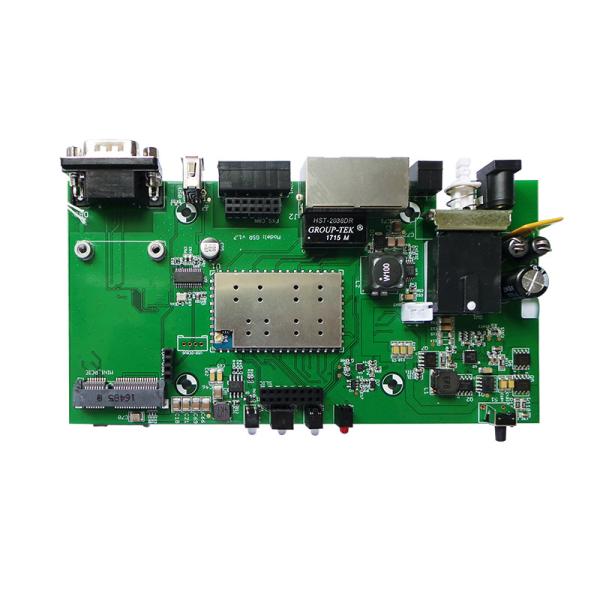

PCBA Picture

3D Printing Electronics PCB Components Assembly , Prototype PCB Fabrication
